ATC Motor 7.5kw 220V 125mm Water-Cooled Automatic Tool Change BT40 Tool Holder Computerized Numerical Control Milling Machine Engraving

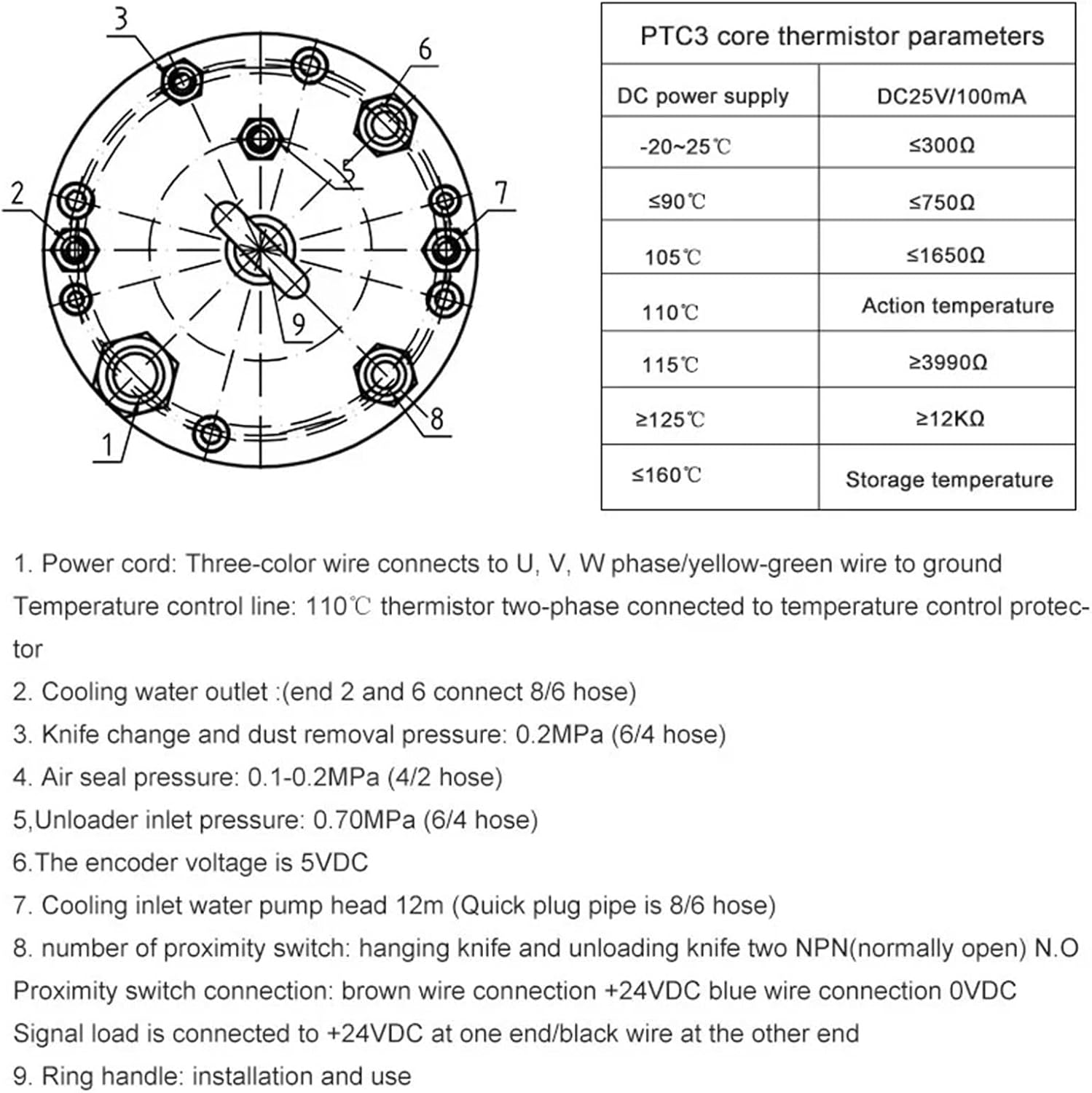

Industrial MotorsATC Motor 7.5kw 220V 125mm Water-Cooled Automatic Tool Change BT40 Tool Holder Computerized Numerical Control Milling Machine Engraving Product Description Model: GDL125-40-12Z/7.5Diameter (mm): 125Speed regulation mode: The three-phase output inverter can change the speed by changing the frequency of the inverter.Cooling method: water coolingPower: 7.5kwVoltage: 380VCurrent: 16.5ATq: 5.98NmFrequency:600HZSpeed: 12000RPMNumber of poles: 6PPhase 3 phase asynchronous driverRotation: Seen from the shaft end, it rotates counterclockwiseTool handle: BT40Pull stud: BT40-45°Grease lubricationMain use: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals. 1. Power cord: Three-color wire connects to U, V, W phase/yellow-green wire to groundTemperature control line: 110 thermistor two-phase connected to temperature control protector2. Cooling water outlet :(end 2 and 6 connect 8/6 hose)3. Knife change and dust removal pressure: 0.2MPa (6/4 hose)4. Air seal pressure: 0.1-0.2MPa (4/2 hose)5,Unloader inlet pressure: 0.70MPa (6/4 hose)6.The encoder voltage is 5VDC7. Cooling inlet water pump head 12m (Quick pipe is 8/6 hose)8. number of proximity switch: hanging knife and unloading knife two NPN(normally open) N.OProximity switch connection: brown wire connection +24VDC blue wire connection 0VDCSignal load is connected to +24VDC at one end/black wire at the other end9. Ring handle: installation and use 1.Double sealing and air sealing structureUnique double sealing air seal structure greatly improves the dustproof and waterproof performance, widely used in copper,aluminum, steel and other gold is a carving and cutting and stone and Computerized Numerical Control fine carving processing center field2.Equipped with standard BT40 taper holesThe shaft ends are connected with standard BT40 taper holes. The adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the P4 fully sealed angular contact ceramic bearings can extend the service life of the .The longer the length, the greater the Tq and the greater the power.Careful assembly makes the more precise.The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm1. Our main shaft uses 4 bearings.2. Bearings are to high temperature and low heat3. Ceramic ball bearings have low friction, low noise and long service life. he water-cooled must be used together with the water pump. Otherwise, the will quickly break.he AC motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the . Before use, please set the inverter parameters suitable for the . Otherwise, the and inverter will break immediately.
